DIA2 - Dashboard Design

A revision of existing interface for the purpose of catering to a new user group and improving the user experience.

01

Project Overview

DIA2 (Deep Insights Anytime, Anywhere) is an NSF-funded project, designed to help researchers search for funded projects and build connections with other experts. When I joined the project, I was asked to help to decide on a new color scheme for the interface and revised it if necessary. I noticed that the overall style of the interface is out-of-date, and the layout could be further improved. Since the flat design style started to become popular and was supported by professionals and designers in various fields. I decided to adapt the style to the design of DIA2. After working closely with developers, we revised the interface and successfully improved the user experience of DIA2.



MY ROLE

- Led the UX/UI design work on the interface design in close

   collaboration with the front-end developer

- Evaluated the performance of the new version of the

   interface

UI Designer/UX Researcher

MY TOOLS

PROBLEM

SOLUTION

Design Style & User Experience

For DIA2, the design style should serve as a supporter for providing an enjoyable user experience. Also, for a tool like DIA2 that needs to process enormous amount of data incessantly, how to reduce the loading data should also be considered carefully.

I adapted the flat design style and got rid of additional design elements. I also changed the font style, from Helvetica Neue to Open Sans.

02

Design Process

Mockup

Since the goal of this project was to revise the interface instead of designing from scratch, I chose to start with mockup becuase it is more appropriate when revising the visual representation of the skeletal framework of a website.

I not only proposed 8 revisions to the team, I also suggested the team to change the font family from Helvetica Neue to Open Sans. Since Open Sans is not only one of the most used web fonts in the year 2013 but also the fastest loading font, it is reasonable to use Open Sans on DIA2.

Some wireframe ideas and the WINNER (left)



Deciding on the Color Scheme

It took the team several rounds of discussions to finally settle on the color scheme. During the discussions, all kinds of colors have been brought up: navy blue, teal, yellow, green, even purple. However, it is important to note that the color scheme should not only keep consistency with the color scheme of NSF but also help researchers with focusing on their tasks. At the end, our team decided to use sky blue, sea blue, and light gray as the color scheme of the interface of DIA2.

Why we chose these three colors? Because:

Keep Consistency with NSF

The official website of National Science Foundation heavily uses sky blue and sea blue. Thus, adapting these two colors into DIA2 can help users related DIA2 with National Science Foundation.

Keep Consistency with the Original Interface

The original interface used a series of blue. For  users who have been using DIA2 for a while, changing the color scheme dramatically may not only cause confusions but also unnecessary learning time.

Blue is one of the colors that stand out the least

There are studies exploring the appropriate usage of different colors. A large body of research supports the idea that blue is one of the colors that stand out the least. Thus, using blue is likely to help with concentrating on performing tasks on DIA2.

Visual Comps

Based on the persona and design requirements our team created earlier, we identified several functions that should be added into DIA2. I created a high-fidelity visual comp to communicate with the whole team.

03

Final Design

Color & Fonts

#505050

Nav bar

Main decorative color

#2BBFE6

#E1E1E1

Background



Open Sans

AaBbCcDdEeFfGgHhIiJjKkLlMmNnOoPpQqRrSsTtUuVvWwXxYyZz

01

Startguide

Less text.

More organized layout.



02

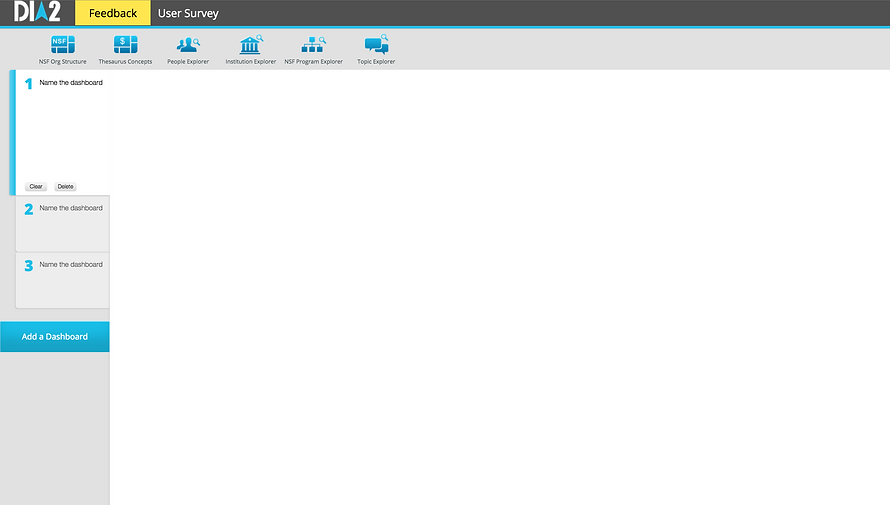

Main Interface

Larger operating space.

Fewer unnecessary visual elements.

I got rid of the space between each dashboard and emphasized the active dashboard.

This change allows the interface to show more dashboards on the screen at once. Also, during the usability testing, users didn't have to scroll up and down to switch between different dashboards. This change proves to be a major  improvement on usability.



04

Outcome

I conducted user testings on DIA2 to compare the performance between the old interface and new interface. The improvement of the usability is significant and the new version helps users save 14 seconds when they perform one single search. And the paper based on this evaluation has been published in HCI international conference 2016, and I am invited to present at the conference in July 2016.

LESSON LEARNED

Revision is not Redesign

Not matter whether you are redesigning a product or revising an interface, the essential goal is to solve the problem, meet certain standards, or achieve desired results. When we designers are asked to refine a product, it's not about how dramatic we change the look of the product. It's how much we improve the user experience. So, if a small change of the interface can help solving the problem, let that small change be the solution.
